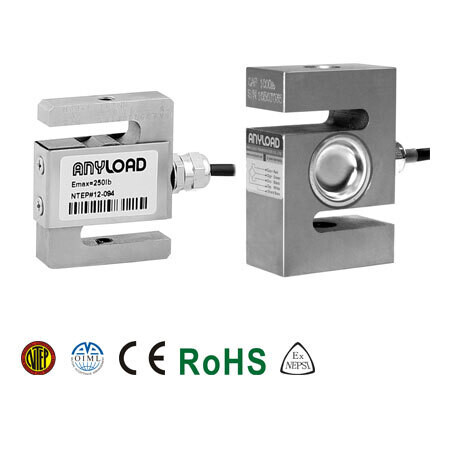

The 101NH S-beam is an OIML C3/C4.5 and NTEP-approved S-beam suited to a wide variety of applications due to its simplicity, ease of installation, and overall reliability. Threaded mounting holes allow easy mounting to most fixtures. This IP67 water-resistant S-beam is also interchangeable with Rice Lake RL20000, Revere 363, Coti Global CGSB / CSGB-1, and more (see: INTERCHANGEABLE tab). This versatile design is popular in a wide range of applications, including tank, process weighing, hoppers, and countless other force measurement and tension weighing needs.

Features:

• Material: Alloy steel
• Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
• Full Scale Output: 3mV/V ± 1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
• NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
• OIML MAA C3, Y=17 000 certified from 200kg-1.5t
• OIML MAA C4.5, Y=14 000 certified from 2t-10t
• CE, RoHS and Ex certified
