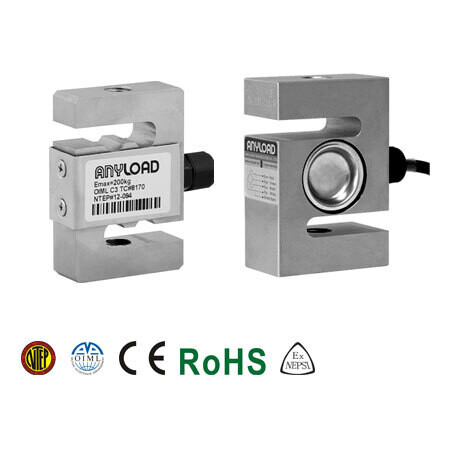

The 101BH S-beam is a highly versatile load cell with a wide range of capacities. The design offers excellent accuracy and reliability while remaining an affordable weighing solution. This model is OIML C3/C4.5 and NTEP certified and is interchangeable with Vishay Tedea-Huntleigh 615. The 101BH is ideal for many tension applications, including converting mechanical weighbridges, hopper weighing, and force measurement. The 101BHM1 and 101BHM2 weigh modules facilitate high accuracy tension loading, including protection against stray currents. Anyload is equipping growth in the force measurement industry with this simple, portable, and reliable load cell, click here to see more force measurement products .

Features:

• Material: Alloy steel
• Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
• Full Scale Output: 2mV/V ± 1%
• Safe Overload: 150%
• Breaking Overload: 300%
• IP Rating: IP67
• NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
• NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
• OIML MAA C3, Y=17 000 certified from 200kg-1.5t
• OIML MAA C4.5, Y=14 000 certified from 2t-10t
• CE, RoHS and Ex certified
