HIGHLIGHTS
- Massload’s Made in Canada load shackles come in T24 Wireless or wired configurations
- Load shackles are a cost effective solution for vehicle road rescue and towing, load lifting, boat lifting, and line tension measurement
- Standard Crosby bolt type shackle G-2130
- Accuracy 0.1% to 0.5% FS with multi-point calibration
- Eliminate cables and communicate with a range of wireless receivers including hand-held displays or PC-based data logging
- 2.4 Ghz wireless transmitter
- Wireless range up to 800 m (2,600 ft) free field site
- Powered by 2 “AA” size replaceable batteries
- Exceptionally low power for long battery life
- Wireless remote power ‘on’ and ‘off’
- Wired configuration includes with mV/V, 4-20mA and 0-10V output
- Waterproof to IP67
Support local manufacture with Massload’s rugged and reliable industrial grade Load Shackle. Available in both T24 Wireless and wired configurations with mV/V, 4-20mA, and 0-10V instrumentation.
Common applications include vehicle road rescue and towing, load lifting, boat lifting, and line tension measurement.
Massload’s load shackles are based on the industry standard Crosby bolt type shackle and come in capacities of 8.5t, 12t, 17t, 25t, 35t. The shackles are equipped with wire lock pin for fast assembly and disassembly.
Massload’s load pins are internally gauged and made from the highest quality traceable US or European Stainless Steel.
The 2.4 Ghz wireless transmitters come with an internal antenna enclosed within a rugged and virtually indestructible enclosure ensuring the antenna cannot be damaged by rough handling. The transmitter is powered by 2 AA batteries and goes into sleep mode when not in use, extending battery life to over 500 hours continuous use equivalent. The wireless signal is very robust providing an open field range up to 2000 ft at 3m height.

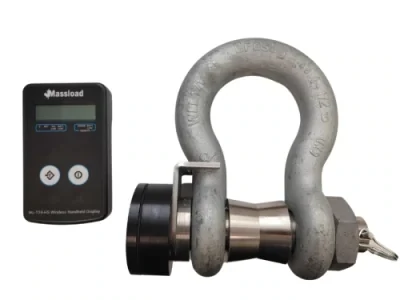

Our T24 Wireless Load Shackle transmits load to a variety of T24 wireless readout indicator options including the WL-T24-HS single channel handheld LCD display, the WL-T24-HA 12-channel handheld LCD display, the WL-T24-BSu base station for data capture on PC, and the WL-T24-AO1i for wirelessly interfacing to 4-20mA PLC input.
Massload’s Wireless Load Shackles are manufactured and calibrated in-house through our VCAP certified Quality Management System.
| Capacities (tonnes) |
8.5t, 12t, 17t, 25t, 35t (55t special order) |
|---|---|
| Accuracy |
Tension load accurate to 0.1% FS to 0.5% FS with multi-point calibration |
| Safe Overload |
150% full scale safe overload |
| Ultimate Overload |
300% full scale ultimate overload |
| Load Pin Full Scale Output |
Wireless to Hand-held Display, 1-channel up to 12-channels Wired 1 mV/V nominal, 4-20mA, 0-10V, etc. |
| Load Pin Excitation |
Wireless Load Pin: 2 AA Batteries Wired Load pin mV/V: 5 V |
| Load Pin Bridge Resistance |
350 Ohm |
| Wireless Frequency |
2.4 Ghz |
| Wireless Range |
Up to 800m (2600ft) free field at 3m height |
| Wireless Transmitter Battery Life |
500 Hours Continuous (2 months @ 8hrs/day use) |
| Operating Temp |
Wired:-40°C to +80°C |
| Compensated Temp |
-10°C to +40°C |
| Sealing Standard |
IP-67 protected from dust and high pressure jets of water |
| Material |
Load pin: 17-4 Stainless Steel (USA or European origin) |
