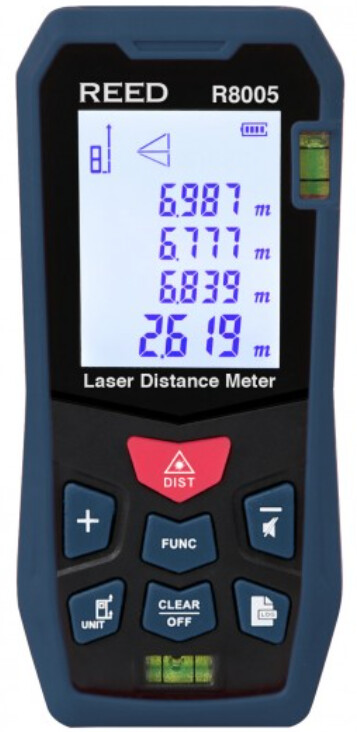

Laser Distance Meter, 164' (50m) Model R8005
Product Details
UPC: 800837004260, 0010000101
Designed for one handed operation, internal memory saves up to 99 measurements.
This laser distance meter measures up to 164' (50 m) and features a backlit multi-line LCD display and the ability to calculate area, volume, and sum of lengths. The R8005 is capable of retaining maximum and minimum readings and up to 99 measurements in memory.
Features
- Designed for one-handed operation
- User selectable unit of measure (imperial/metric)
- Laser target pointer
- Reference point selection (front or rear of instrument)
- Quick, self calculation with real-time readout
- Backlit multi-line LCD display
- Area, Volume and Max/Min functions
- Addition, Subtraction and indirect 2/3 point (Pythagoras) calculations
- Integrated bubble level (horizontal and vertical)
- Continuous measurement mode
- Internal memory saves up to 99 readings
- Low battery indicator and auto shut-off
What's included with the REED R8005
- Laser Distance Meter
- Carrying Case
- Batteries
Ideal Applications for the REED R8005
- Measuring conduit and wire lengths
- Light retrofitting projects
- Piping/exhausts/ventilation and equipment installation
- Conduit layout and installation
- Air ventilation and duct work positioning
- Air volume calculations
- Hot/cold water piping locations
- Determining wire length and duct sizing
- Floor plans
- Network room layout
REED R8005 Specifications
| Measuring Range | 164' (50m) |
| Accuracy | ±(2.0mm+d x 0.005%) |
| Measuring Units | m, ft, in, ft + in |
| Sensor Type | Laser |
| Laser Type | 630 to 670nm, <1mW |
| Display | LCD (multi-line) |
| Backlit Display | Yes |
| Start Point Selection | Yes (Front/Back) |
| Reading Mode | 2 (Single/Continuous) |
| Maximum and Minimum Functions | Yes |
| Calculation Functions | Addition, Subtraction, Area, Volume, Sum of Lengths, 2 point indirect (pythagoras), 3 point indirect |
| Internal Memory | Yes (up to 99 readings) |
| Response Time | 2 seconds |
| Auto Shut-off | Yes (after 3 minutes) |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AAA batteries |
| Laser Class | Class II |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | <85% RH |
| Dimensions | 4.8 x 2.05 x 1.16" (122 x 52 x 29.5mm) |
| Weight | 3.5oz (100g) |
