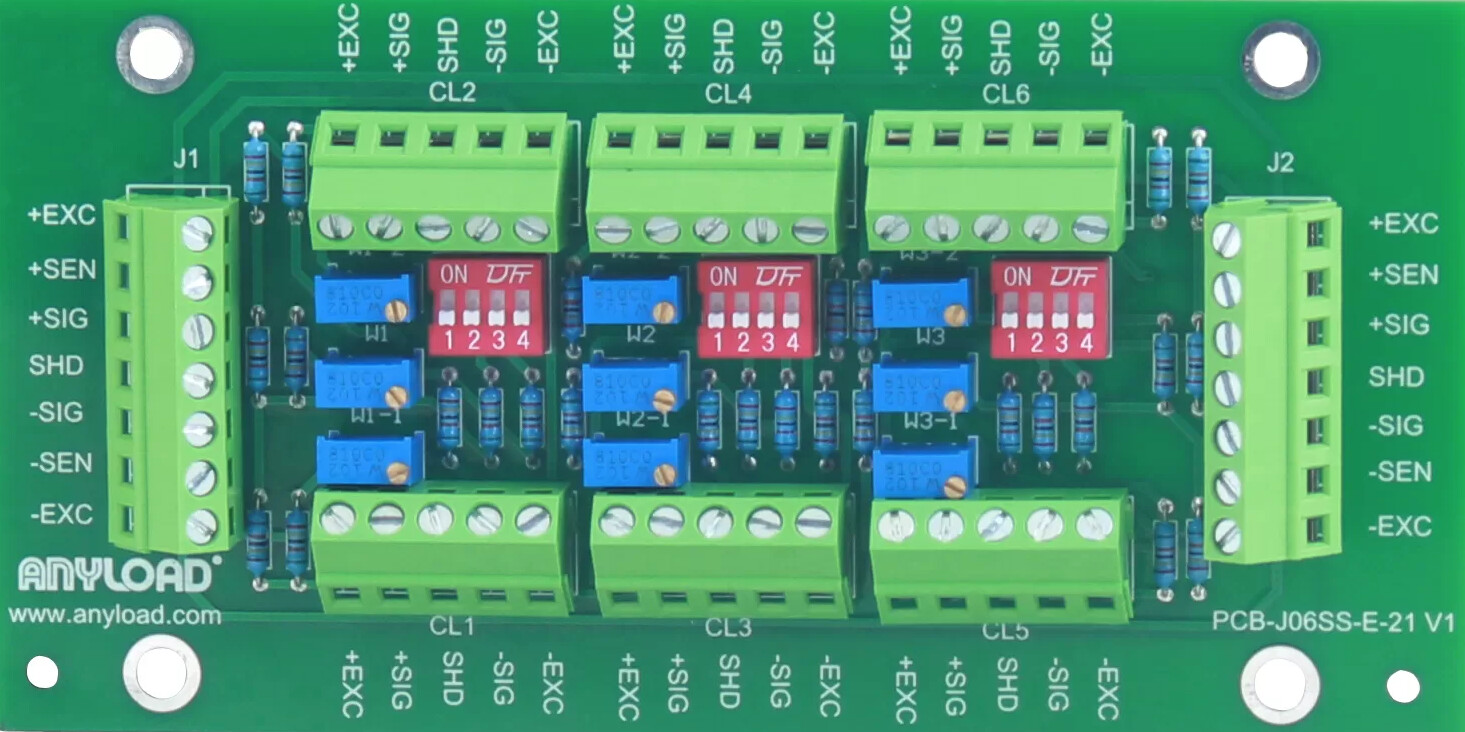

ANYLOAD J06S-E-21-MB junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J0S-E-21-MB is designed to accommodate two to six parallel load cell connections with an expansion port for wiring additional junction boxes. The J06S-E-21-MB load cell junction box main board is easy to install. This model equips with lightning/over voltage protection.

• Number of cells: 2-6 single cells
• Section or individual cell with signal trim
• Lightning/Overvoltage Protection
• Quick removable load cell connectors
• Switchable On/Off power per channel
• Equipped with independent potentiometers
• Conformal coated circuit board
• Expansion port to/for additional J-Box
• IP Rating: IP67
