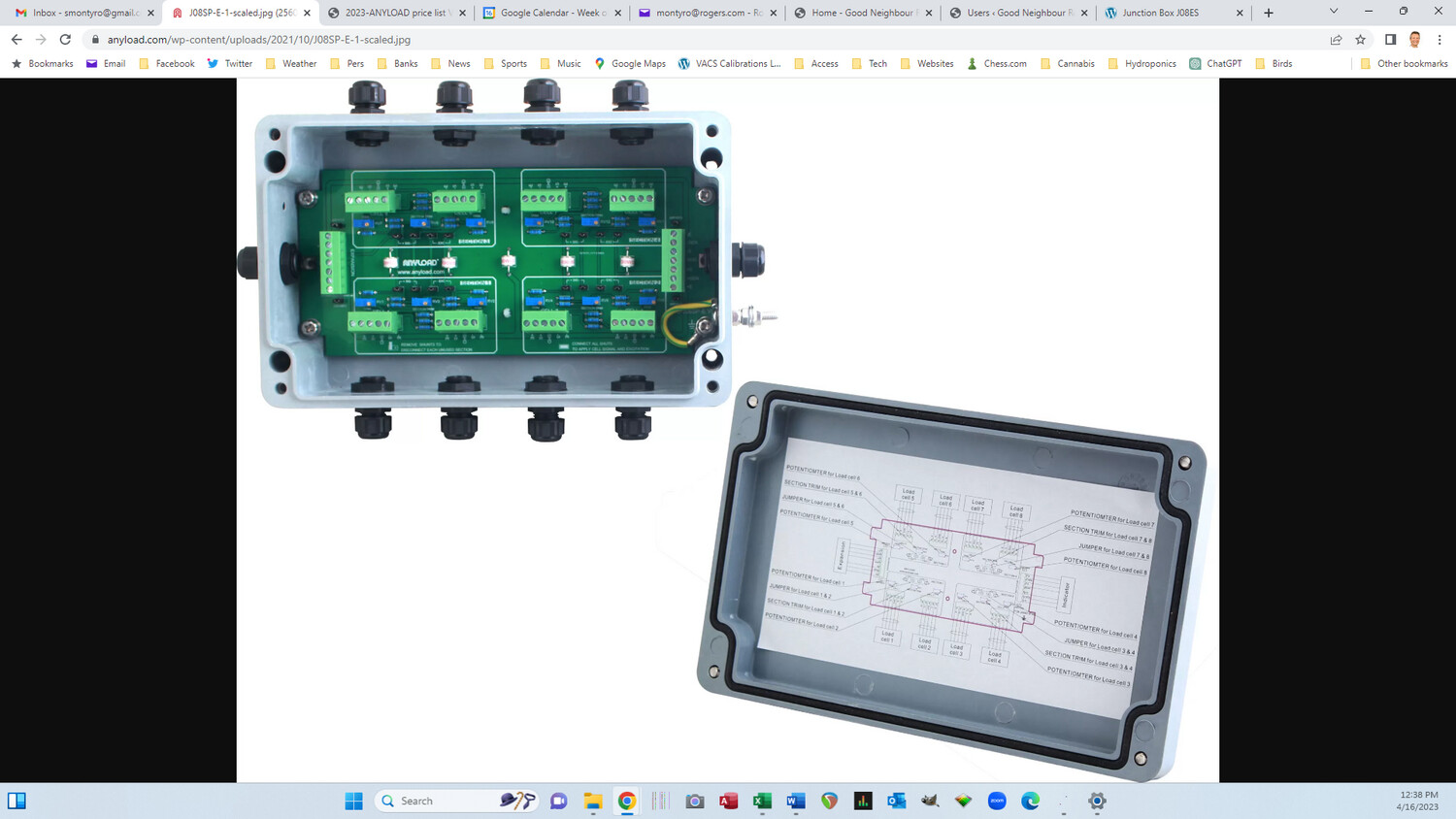

ANYLOAD J08SP-E junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J08SP-E is housed in a fiberglass reinforced polyester enclosure purpose-built to prevent condensation and saltwater damage. It is designed to accommodate two to eight parallel load cell connections with an expansion port for wiring additional junction boxes. The J08SP-E load cell junction box is easy to install with quick removable load cell connectors and with our captive screw design securing the cover. This model equips with lightning/over voltage protection.

• Enclosure Material: Fiberglass Reinforced Polyester
• Number of cells: 2-8 single cells
• Section or individual cell with signal trim
• Lightning/Overvoltage Protection
• Quick removable load cell connectors
• Switchable On/Off power per channel
• Equipped with independent potentiometers
• Preinstalled GORE breather vent
• Conformal coated circuit board
• Expansion port to/for additional J-Box
• "No-loss" captive screw design
• IP Rating: IP67
