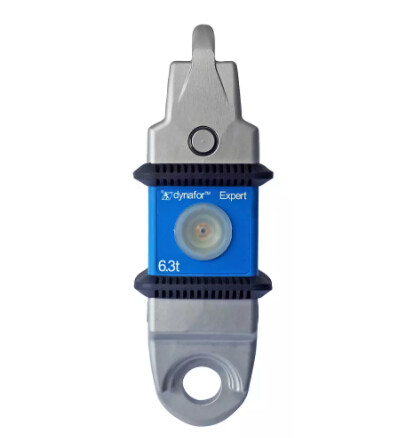

The Dynafor® Expert, designed and manufactured by Tractel, is a wireless digital dynamometer, used in high precision applications. With its unique design, it allows to reach extreme precision.
Based on the principle of strain gauge extension measurement, the sensor generates an electrical signal which is processed and analyzed by a built-in microprocessor, which transmits the information to a wireless accessory.
Equipped with radio 2.4 GHz (RF) and Bluetooth (BLE) chipsets available all time, the Dynafor® Expert provides a wireless range of: 1,300 ft. (400 m) to Tractel Dynafor® HHD, large displays AL128 and software accessories 100 ft. (30 m) to any smartphone equipped with our free Dynafor® app on iOS or Android
Compatible with standard bow and clevis shackles, the Dynafor® Expert ensures a perfect implementation in your applications.
FEATURES
- Load indicator dynamometer sensor only IP 64
- Capacity range from 1,000 to 20,000 lbs. (1⁄2 to 10 t)
- Operating temperature range from -4°F to 104°F (-20°C to 40°C)
- Power supply: three 1.5 V “AA” batteries
- Sensor protection: IP 64 (IP67 as an option)
- Display protection: IP 54
ACCESSORIES
The Dynafor® Expert offers a large array of wireless accessories and software:
- Dynafor® HHD for a remote display with extended functionalities
- Wireless Dynafor® AL128 for a high visibility display
- Loader software to unload data saved into the Dynafor® HHD
- Monitoring software, in use with Dynafor® HHD for real-time monitoring
- Dynafor® application available on any iOS and Android device
- Dynafor® DMU for threshold management
- Standard bow and clevis shackles
APPLICABLE STANDARDS
- Radio certifications : CE :Radio test EN 300 440-2 V1.1.1 / USA & Canada : FCC part 15 / Australia : C-Tick ID
Technical Sheet
