Features
- Works on all standard Rockwell Hardness Scales including HRA, HRBW, HRC, HRE, HRF among many others.
- Advanced design, easy to operate
- Engineered to obtain highly sensitive and accurate readings
- Perfect for laboratories, workshops, tool rooms, inspection labs, etc.

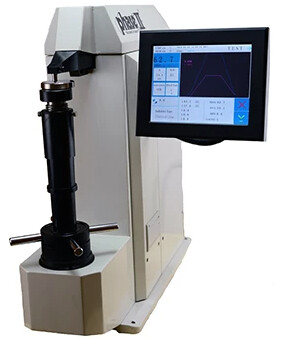

This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled Touch Screen with USB output to PC. Utilizing the guidelines of ASTM E-18, the 900-367 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell hardness scales.
Direct Loading Method With Load-Cell Instead Of Dead Weight System. High Speed Test Cycle and Extremely Accurate Loading Control
- Automatic conversions to HB, HV, Superficial Rockwell Scales
- Touch Screen selectable system
- Upper/Lower Limit Settings
Specifications: Rockwell Hardness Tester
| Minor Load | 10 Kgf |
|---|---|
| Major Load | 60 Kgf, 100 Kgf, 150 KGF |
| Test Force Application | Load Cell Closed Loop |
| Test Force Control | Motorized |
| Results Display | Hi Def LCD Digital Readout |
| Resolution | 0.01HR |
| Vertical Capacity | 7.80” |
| Throat Depth | 5.90” |
| Height | 27.5”/700mm |
| Width | 23.6”/600mm |
| Depth | 9.84”/250mm |
| Weight | 220 lbs/100Kg |
Accessories: Included
- C-scale Diamond Indenter
- 1/16″ Ball Indentor
- 3- HRC Test Blocks
- 1- HRB Test Block
- Test Table 5.87″ (150mm)
- Flat Anvil 2.5″ (63mm)
- Std. V- Anvil
- Accessory Case
Test resolution: 0.01HR Rockwell unit;
Operation temperature: 50° – 95°F (10ᵒC～35ᵒC)
Ambient environment: clean, no vibration, no strong magnetic field, and no corrosive medium;
Power supply: single phase, AC, 110-220 with manual change, 50～60Hz, 4A;
Machine dimension: 27.5”x23.6”x9.84” /700mm×250mm×600mm
