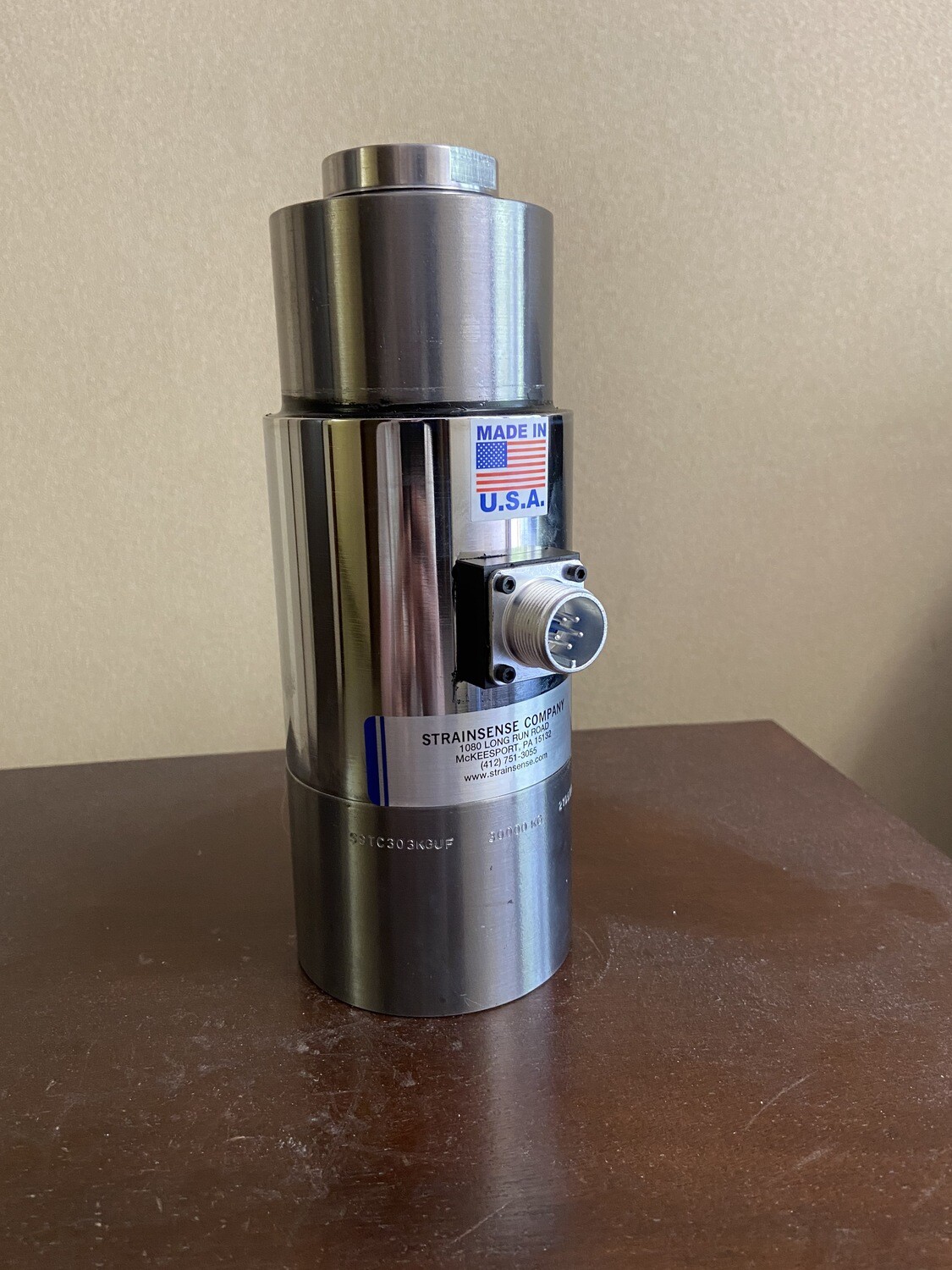

30,000 lbs T/C CALIBRATION LOAD CELL, MODEL SSTCAL303UF
Product Details
- CHROME COVER JACKET
- FEMALE THREAD DESIGN
- FEMALE THREAD DIMENSION: 1”-14 – 1.2” (DEEP)
- LOAD CELL LENGTH: 6.7” --- LOAD CELL DIAMETER:2.5”
- 2.2 MV/V F.S. OUTPUT
- SCREW-IN LOAD BUTTON DESIGNED FOR COMPRESSION TESTING
- 5-PIN ENVIRONMENTAL INTEGRAL CONNECTOR
- ELECTRICALLY DESIGNED TO OPERATE WITH YOUR EXISTING SYSTEM (2.2 MV/V)
- CALIBRATION QUALITY --- WARRANTY TO PASS THE ASTM E-74 SPECIFICATIONS
- LOAD CELL WARRANTY:2 YEARS ---
