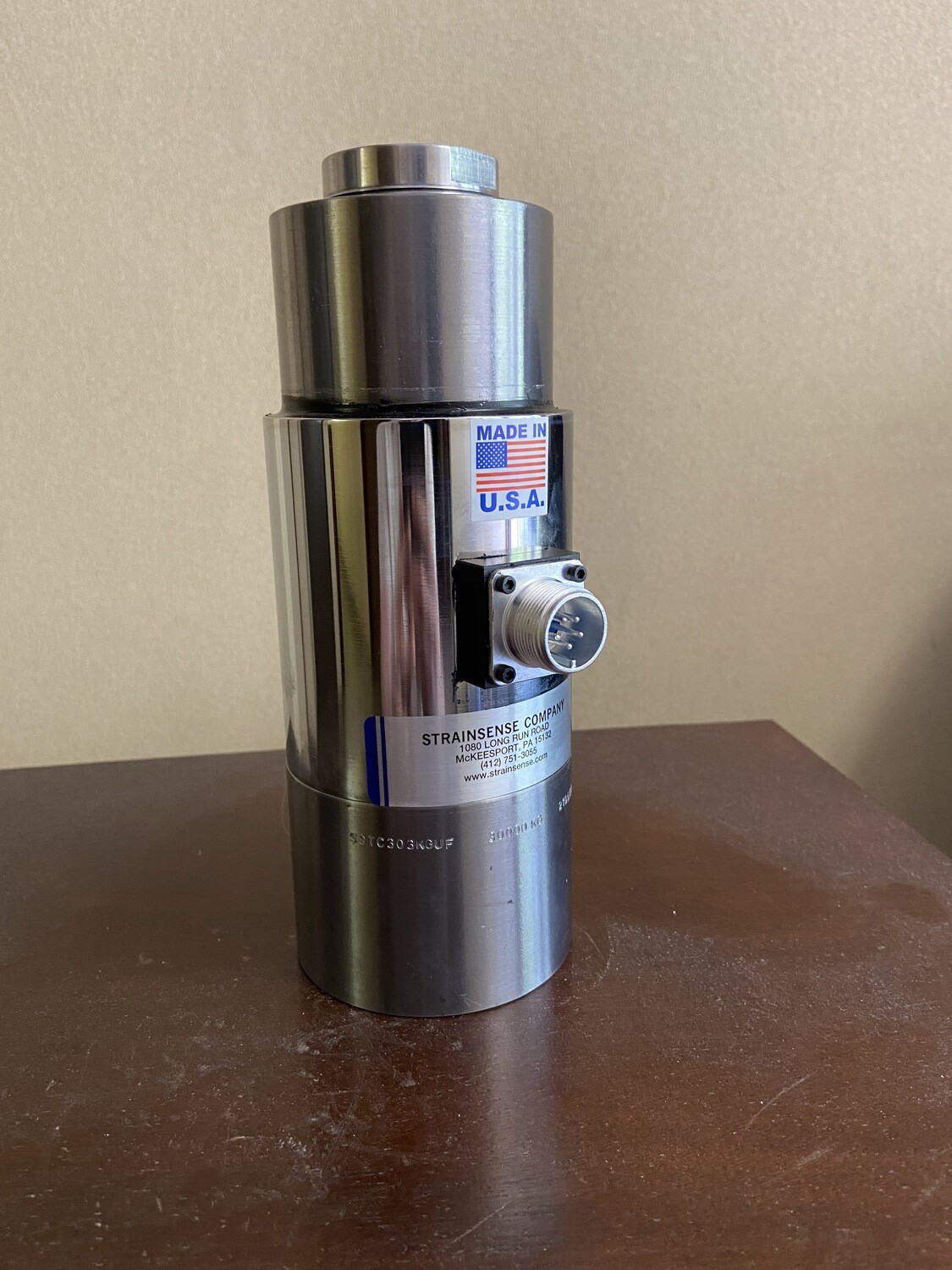

100,000 lbs T/C CALIBRATION LOAD CELL, MODEL SSTCAL104UF
Product Details
- CHROMED COVER JACKET
- FEMALE THREADS: 2”-12 EACH END
- LOAD CELL DIAMETER:3.5” --- LOAD CELL LENGTH:9”
- SCREW-IN LOAD BUTTON FOR COMPRESSION TESTING
- INTEGRAL CONNECTOR-5 PIN AMPHENOL CONNECTOR
- 2.2 MV/V F.S. OUTPUT
- CALIBRATION QUALITY---WARRANTED TO PASS ASTM E-74 SPECIFICATIONS
- ALIGNMENT MARK PROVIDED ENABLES THE OPERATOR TO OPTIMIZE THE LOCATION OF THE CELL WITH REGARDS TO THE STRAIN GAGE SENSORS WHEN CALIBRATING TESTING MACHINES WITH LARGE BENDING MOMENTS
- EXTRA STRAIN GAGES ADDED TO THIS LOAD CELL (N/C)
- LOAD CELL WARRANTY:THREE (3) YEARS
